Weldable Strain Gages for Harsh Environments-Adhesive-Free. Field-Ready. Proven Where It Matters



Engineered for field installations where adhesives fail. Trusted in bridges, pipelines, heavy machinery, and high-heat automotive systems





Why Weldable Strain Gages?

When adhesives won’t stick, temperatures soar, or field conditions are unpredictable—weldable strain gages deliver reliable, accurate measurements with no cure time or clamping.



  •       No adhesives required
  •       Portable spot welding
  •       Extreme environments
  •       Easy surface prep – minimal tools needed
  •       Compatible with Model 700B handheld welder



Install Anywhere. Measure with Confidence.

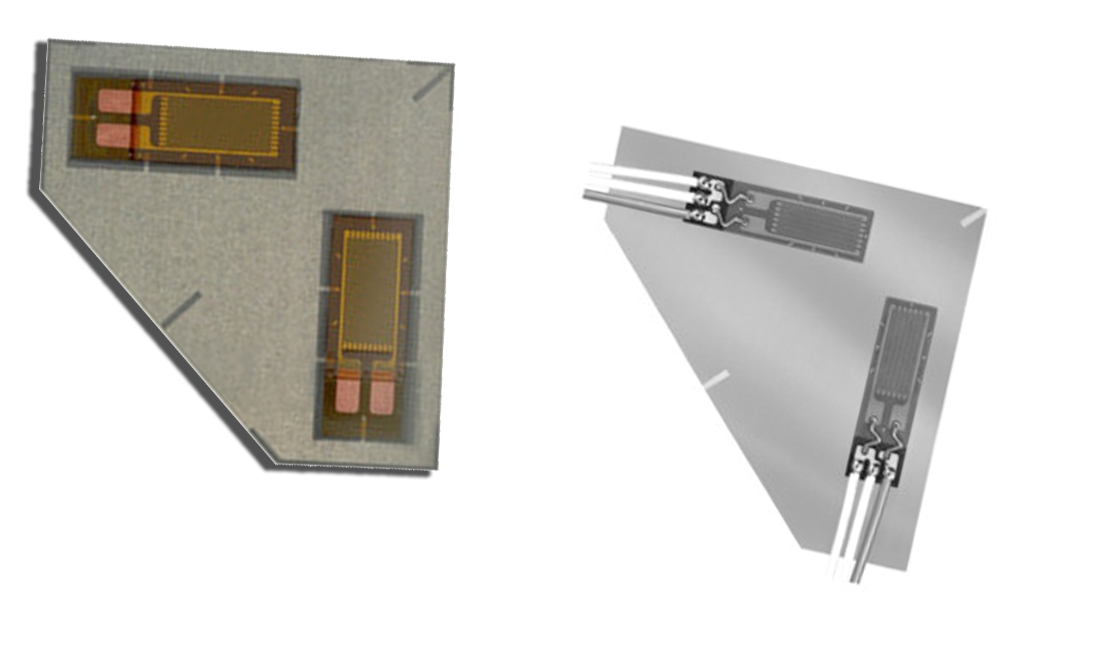

CEA-Series: Flexible, Compact, Field-Friendly

  • Polyimide-encapsulated constantan foil
  • Contours to ½-inch radius
  • Copper-coated rugged tabs
  • Direct leadwire attachment
  • Temperature range: –100°F to +200°F (short-term to +300°F)



Ideal for: Bridges, vehicle structures, rotating equipment, field retrofits

LWK-Series: Rugged, High-Temperature Performance



  • Nickel-chromium alloy grid
  • Fiberglass-reinforced epoxy-phenolic backing
  • Prewired with 10" Teflon-insulated leads
  • Operating from –320°F to +500°F (short-term to +550°F)



Ideal for: Pipelines, pressure vessels, energy plants, automotive engine bays



Get the Datasheet



Civil & Structural



Challenge: Measuring stress on bridges, dams, or tunnels in unpredictable weather


Solution: CEA-Series installs on curved surfaces with spot welding—no adhesive cure delays

Energy Sector



Challenge: Harsh conditions in refineries, offshore rigs, and high-pressure lines


Solution: LWK-Series tolerates extreme heat and comes prewired for fast hookup

Industrial Systems



Challenge: Monitoring strain in hard-to-reach areas of large equipment


Solution: Portable, quick-install gages reduce downtime during inspection

Automotive



Challenge: Testing dynamic stress in engine components or suspensions


Solution: CEA & LWK options cover both low-profile and high-heat requirements



The Weldable Gage Advantage

  • Field-ready installation: No adhesives, curing time, or complex surface prep
  • Proven durability: Withstands heat, vibration, rough handling, and outdoor exposure
  • Prebonded consistency: Factory-applied bonding ensures placement reliability
  • Flexible or high-temp options: Choose the right fit for curved surfaces or elevated heat
  • Compact welding tools: Compatible with portable spot welders like the Model 700
  • Trusted performance: Used worldwide in safety-critical testing and monitoring



The Field Engineer’s Favorite Tool: Model 700B

Our handheld welder lets you spot weld strain gages anywhere—lightweight, battery-powered, and fast

700b welder

Ready to Weld Where Others Can’t?

Whether you're testing a bridge joint or a turbine flange, we've got the right gage.
