Micro-Measurements a World Leader in General Purpose Linear Strain Gages

At Micro-Measurements, we specialize in providing world-class general-purpose strain gages, also known as axial strain gages, uniaxial strain gauges, or linear strain gauges. Our products are engineered to deliver precise and reliable measurements for automotive, aircraft, spacecraft, civil, and industrial research applications. We understand the critical role that accurate strain measurement plays in experimental stress analysis and offer solutions that address the unique challenges faced by professionals in these demanding industries.



Why Choose Micro-Measurements Linear Strain Gages?

Our general-purpose linear strain gages are designed to meet the highest standards of precision and durability. They provide invaluable data that helps engineers and researchers understand material behavior under stress, leading to safer designs and improved performance. By choosing Micro-Measurements, you're investing in technology that delivers consistent results, reduces downtime, and enhances the efficiency of your projects.

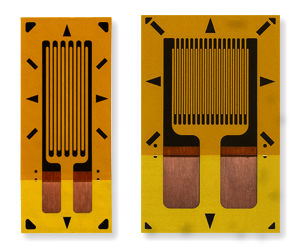

Linear pattern strain gages
Metal forming steel beams at the metal products warehouse, H-beam steel and Wi-Frank steel

Core Features of Micro-Measurements' Linear Strain Gages:

  • High Sensitivity and Accuracy: Our uniaxial strain gauges offer exceptional sensitivity to detect minute strain variations, ensuring precise measurements crucial for experimental stress analysis.
  • Robust Construction: Engineered with durable materials to withstand harsh environmental conditions, including extreme temperatures and mechanical loads.
  • Easy Integration: Compatible with a wide range of materials and structures, simplifying installation and integration into your existing systems.
  • Versatile Applications: Suitable for both static and dynamic measurements, catering to various testing requirements across different industries.
  • Comprehensive Support: Access to our expert technical team for guidance on product selection, installation, and data interpretation.
CONTACT OUR LINEAR PATTERN STRAIN GAGES EXPERTS

Industry Applications of Micro-Measurements Linear Strain Gages

In the automotive sector, our axial strain gages are instrumental in testing vehicle components for fatigue and stress under real-world conditions. For example, manufacturers use our linear strain gages (gauges) to measure the stress on chassis and suspension systems, leading to the development of safer and more reliable vehicles. Precision is paramount in the aerospace industry. Our uniaxial strain gages (gauges) help engineers monitor stress on aircraft wings and fuselage sections during flight tests. This data is critical for ensuring structural integrity and compliance with safety regulations.



Civil engineers rely on our general-purpose strain gages to assess the structural health of bridges, buildings, and other infrastructures. By measuring strain in critical areas, they can predict potential failures and schedule maintenance proactively, enhancing public safety. In industrial settings, our linear strain gages (gauges) are used for machinery health monitoring and material testing. Companies utilize our products to optimize equipment performance, prevent breakdowns, and extend the lifespan of their assets.

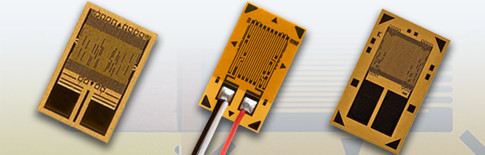

For Our Full Range of Stress Analysis Linear Patterns





CEA Series Linear Strain Gages




























































          [in/mm]   [in/mm]   [in/mm]   [in/mm]



Configuration



 Pattern   Res. [Ω]

Gage

Length



Gage

Width



Matrix

Length



Matrix

Width

   Standard STC

Temperature Range

   Options

Linear Strain Gage 015UWA   120   0.015 [0.38]   0.02 [0.51]   0.24 [6.1]   0.18 [4.6]

00, 03, 05,

06, 09, 13



–100° to +350°F

(–75° to +175°C)

    P2, SP11

  032UWA   120 , 350   0.032 [0.81]   0.06 [1.52]   0.27 [6.9]   0.19 [4.8]

  062UWA   120 , 350 , 1000   0.062 [1.57]   0.12 [3.05]   0.31 [7.9]   0.19 [4.8]

  125UNA   120 , 350   0.125 [3.18]   0.1 [2.54]   0.38 [9.7]   0.19 [4.8]

  125UWA   120 , 350   0.125 [3.18]   0.18 [4.57]   0.42 [10.7]   0.27 [6.9]

  250UNA   120 , 350 , 1000   0.25 [6.35]   0.12 [3.05]   0.52 [13.2]   0.22 [5.6]

  250UWA   120 , 350   0.25 [6.35]   0.18 [4.57]   0.55 [14.0]   0.27 [6.9]

  375UWA   120 , 350   0.375 [9.53]   0.18 [4.57]   0.67 [17.0]   0.27 [6.9]

  500UWA   120 , 350   0.5 [12.70]   0.18 [4.57]   0.8 [20.3]   0.27 [6.9]

























Linear Strain Gage - Tabs on one side 062UBA   350   0.062 [1.57]   0.12 [3.05]   0.21 [5.3]   0.34 [8.6]

  125UBA   350   0.125 [3.18]   0.16 [4.06]   0.34 [8.6]   0.39 [9.9]

  250UBA   350   0.25 [6.35]   0.16 [4.06]   0.42 [10.7]   0.42 [10.7]

























                              Temperature Range
Typically used with: M-Bond 200 Kit   Room temperature instant curing strain gage adhesive    –25° to +150°F (–30° to + 65°C)

M-Bond AE-10 Kit   Two-component, 100%-solids epoxy system for general purpose strain gages
Room temperature cure, highly resistant to moisture and most chemicals		   –320° to +400°F (–195° to +204°C)

  M-Bond 600 Kit    Two-component, solvent-thinned, epoxy-phenolic strain gage adhesive for high-performance    –452° to +500°F (–268° to +260°C)



C4A Series Linear Strain Gages






































          [in/mm]   [in/mm]   [in/mm]   [in/mm]
Configuration Pattern   Res. [Ω]

Gage

Length



Gage

Width



Matrix

Length



Matrix

Width

   Standard STC    Temperature Range   Options

Gages With Pre-attached Cables 060SL   120 , 350   0.06 [1.52]   0.1 [2.54]   0.24 [6.0]   0.19 [4.9]

06, 09, 13



–60° to +180°F

(–50° to +80°C)



23P, 39P

  125SL   120 , 350   0.125 [3.20]   0.1 [2.54]   0.28 [7.1]   0.19 [4.9]

  235SL   120 , 350   0.235 [5.97]   0.1 [2.54]   0.37 [9.4]   0.19 [4.9]

























                              Temperature Range
Typically used with: M-Bond 200 Kit   Room temperature instant curing strain gage adhesive    –25° to +150°F (–30° to + 65°C)

M-Bond AE-10 Kit   Two-component, 100%-solids epoxy system for general purpose strain gages
Room temperature cure, highly resistant to moisture and most chemicals		    –320° to +400°F (–195° to +204°C)


M-Bond AE-15 Kit



Two-component, 100%-solids epoxy system for general purpose strain gages, Highly resistant to moisture and most chemicals, Cryogenic applications require very thin gluelines

    –320° to +200°F (–195° to +95°C)



C5K Series Linear Strain Gages




































          [in/mm]   [in/mm]   [in/mm]   [in/mm]
Configuration Pattern   Res. [Ω]

Gage

Length



Gage

Width



Matrix

Length



Matrix

Width

   Standard STC    Temperature Range   Options

Gages With Pre-attached Cables S5145   350   0.030 [0.76]   0.063 [1.60]   0.12 [3.1]   0.10 [2.6]

03, 05, 06,

09, 13



     –100° to +400°F

(–75° to +205°C)



23P, 39P, 2R

NEW! 050LK   5000   0.050 [1.27]   0.073 [1.85]   0.17 [4.4]   0.14 [3.6]

NEW! 125LK   350, 5000   0.125 [3.20]   0.065 [1.65]   0.25 [6.3]   0.14 [3.6]

  400LK   5000   0.394 [10.00]   0.102 [2.59]   0.55 [14.0]   0.16 [4.0]



































                              Temperature Range
Typically used with: M-Bond 200 Kit   Room temperature instant curing strain gage adhesive   –25° to +150°F (–30° to + 65°C)

M-Bond AE-10 Kit   Two-component, 100%-solids epoxy system for general purpose strain gages
Room temperature cure, highly resistant to moisture and most chemicals		   –320° to +400°F (–195° to +204°C)

M-Bond 600 Kit    Two-component, solvent-thinned, epoxy-phenolic strain gage adhesive for high-performance   –452° to +500°F (–268° to +260°C)



WK Series Linear Strain Gages




































          [in/mm]   [in/mm]   [in/mm]   [in/mm]
Configuration Pattern   Res. [Ω]

Gage

Length



Gage

Width



Matrix

Length



Matrix

Width

   Standard STC    Temperature Range   Options

Linear Strain Gage 031CF   120 , 350   0.031 [0.79]   0.062 [1.57]   0.19 [4.8]   0.14 [3.6]

00, 03, 05, 06, 09, 13



  –452° to +550°F   (–269° to +290°C)



W, SP11

  031DE   350   0.031 [0.79]   0.032 [0.81]   0.27 [6.9]   0.12 [3.0]

  060CD   1000   0.06 [1.52]   0.1 [2.54]   0.28 [7.1]   0.2 [5.1]

  062AP   350   0.062 [1.57]   0.062 [1.57]   0.26 [6.6]   0.16 [4.1]

  062AQ   5000   0.062 [1.57]   0.062 [1.57]   0.26 [6.6]   0.15 [3.8]

  125AC   1000   0.125 [3.18]   0.125 [3.18]   0.4 [10.2]   0.22 [5.6]

  125AD   350   0.125 [3.18]   0.125 [3.18]   0.4 [10.2]   0.22 [5.6]

  125BB   350   0.125 [3.18]   0.088 [2.24]   0.43 [10.9]   0.22 [5.6]

  125BT   350   0.125 [3.18]   0.062 [1.57]   0.37 [9.4]   0.16 [4.1]

  125BZ   1000   0.125 [3.18]   0.062 [1.57]   0.29 [7.4]   0.13 [3.3]

  250AE   1000   0.25 [6.35]   0.25 [6.35]   0.57 [14.5]   0.36 [9.1]

  250AF   350   0.25 [6.35]   0.25 [6.35]   0.57 [14.5]   0.36 [9.1]

  250BF   1000   0.25 [6.35]   0.125 [3.18]   0.52 [13.2]   0.22 [5.6]

  250BG   350   0.25 [6.35]   0.125 [3.18]   0.52 [13.2]   0.22 [5.6]

  250BK   1000 , 3000   0.25 [6.35]   0.175 [4.45]   0.58 [14.7]   0.27 [7.4]

  375BG   350   0.375 [9.53]   0.187 [4.75]   0.71 [18]   0.29 [7.6]

  500BH   350   0.5 [12.70]   0.175 [4.45]   0.92 [23.4]   0.3 [3.8]

  500GB   350   0.5 [12.70]   0.06 [1.52]   0.75 [19.1]   15.00%

























Linear Strain Gage - Tabs on both sides of the grid 031EC   350   0.031 [0.79]   0.032 [0.81]   0.17 [4.3]   0.23 [5.8]

  062ED   350   0.062 [1.57]   0.062 [1.57]   0.21 [5.3]   0.29 [7.4]

























Linear Strain Gage - Tabs on one side 032SG   1200   0.032 [0.81]   0.032 [0.81]   0.16 [4.1]   0.19 [4.8]

  050SB   350   0.05 [1.27]   0.04 [1.02]   0.19 [4.8]   0.19 [4.8]

























                              Temperature Range
Typically used with: M-Bond 200 Kit   Room temperature instant curing strain gage adhesive   –25° to +150°F (–30° to + 65°C)

M-Bond AE-10 Kit   Two-component, 100%-solids epoxy system for general purpose strain gages
Room temperature cure, highly resistant to moisture and most chemicals		   –320° to +400°F (–195° to +204°C)

M-Bond 600 Kit    Two-component, solvent-thinned, epoxy-phenolic strain gage adhesive for high-performance   –452° to +500°F (–268° to +260°C)



EA Series Linear Strain Gages




































          [in/mm]   [in/mm]   [in/mm]   [in/mm]
Configuration Pattern   Res. [Ω]

Gage

Length



Gage

Width



Matrix

Length



Matrix

Width

   Standard STC    Temperature Range   Options

Linear Strain Gage 015DJA   120   0.015 0.38]   0.02 [0.51]   0.23 [5.8]   0.12 [3.0]   00, 03, 05, 06, 09, 13     –100° to +350°F       (–75° to +175°C)   E, EL, P, W, SP11

  015LA   120   0.015 0.38]   0.02 [0.51]   0.18 [0.46]   0.1 [2.5]

  031CEA   350   0.031 [0.79]   0.062 [1.57]   0.23 [5.8]   0.16 [4.1]

  031CF   120   0.031 [0.79]   0.062 [1.57]   0.19 [4.8]   0.14 [3.6]

  031DE   120 , 350   0.031 [0.79]   0.032 [0.81]   0.27 [6.9]   0.12 [0.12]

  031GEA   350   0.031 [0.79]   0.062 [1.57]   0.12 [3.1]   0.1 [2.5]

  045AL   350   0.045 [1.14]   0.045 [1.14]   0.22 [5.6]   0.14 [3.6]

  050AH   120   0.05 [1.27]   0.04 [1.02]   0.23 [5.8]   0.14 [3.6]

  060CD   350   0.06 [1.52]   0.1 [2.54]   0.28 [7.1]   0.2 [5.1]

  062AK   120   0.06 [1.52]   0.062 [1.57]   0.27 [6.9]   0.14 [3.6]

  062AP   120   0.062 [1.57]   0.062 [1.57]   0.26 [6.6]   0.16 [4.1]

  062AQA   350   0.062 [1.57]   0.062 [1.57]   0.26 [6.6]   0.15 [5.8]

  062DN   350   0.062 [1.57]   0.062 [1.57]   0.34 [8.6]   0.18 [4.6]

  070LC   350   0.07 [1.78   0.022 [0.56]   0.24 [6.1]   0.09 [2.3]

  125AC   350   0.125 [3.18]   0.125 [3.18]   0.4 [10.2]   0.22 [5.6]

  125AD   120   0.125 [3.18]   0.125 [3.18]   0.4 [10.2]   0.22 [5.6]

  125BT   120   0.125 [3.18]   0.062 [1.57]   0.37 [9.4]   0.16 [4.1]

  125BZA   350   0.125 [3.18]   0.062 [1.57]   0.29 [7.4]   0.13 [3.3]

  250AE   350   0.25 [6.35]   0.25 [6.35]   0.57 [14.5]   0.36 [9.1]

  250BF   350   0.25 [6.35]   0.125 [3.18]   0.52 [13.2]   0.22 [5.6]

  250BG   120   0.25 [6.35]   0.125 [3.18]   0.52 [13.2]   0.22 [5.6]

  250BK   1000   0.25 [6.35]   0.175 [4.45]   0.58 14.7]   0.27 [6.9]

  500BH   120   0.5 [12.70]   0.175 [4.45]   0.92 [23.4]   0.3 [7.6]

























Linear Strain Gage - Tabs on both sides of the grid 015EH   120   0.015 [0.38]   0.02 [0.51]   0.15 [3.8]   0.19 [4.8]

  031EC   120   0.031 [0.79]   0.032 [0.81]   0.17 [4.3]   0.23 [5.8]

  062EN   350   0.062 [1.57]   0.062 [1.57]   0.23 [5.8]   0.31 [7.9]

  125ARA   350   0.125 [3.18]   0.102 [2.59]   0.22 [5.5]   0.37 [9.4]

























Linear Strain Gage - Tabs on one side 032SG   120   0.032 [0.81]   0.032 [0.81]   0.16 [4.1]   0.19 [4.8]

  050SB   120   0.05 [1.27]   0.04 [1.02]   0.19 [4.8]   0.19 [4.8]

  125EP   350   0.125 [3.18]   0.125 [3.18]   0.28 [7.1]   0.35 [8.9]

























                              Temperature Range
Typically used with: M-Bond 200 Kit   Room temperature instant curing strain gage adhesive   –25° to +150°F (–30° to + 65°C)

 M-Bond AE-10 Kit   Two-component, 100%-solids epoxy system for general purpose strain gages
Room temperature cure, highly resistant to moisture and most chemicals		    –320° to +400°F (–195° to +204°C)

M-Bond 600 Kit   Two-component, solvent-thinned, epoxy-phenolic strain gage adhesive for high-performance   –452° to +500°F (–268° to +260°C)
