CHA Series: Enhanced Humidity Protection

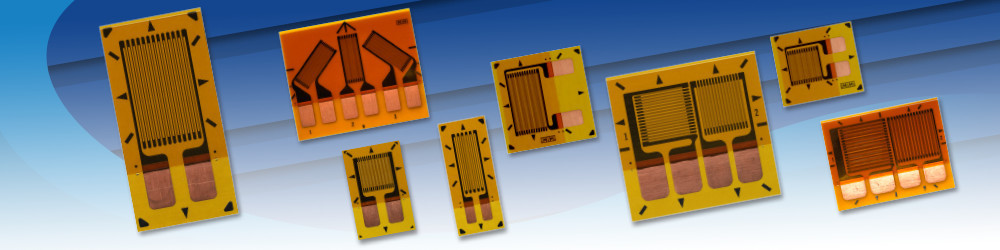

Micro Measurements has a long history of building the CEA Series strain gages, which have proved to be a worldwide industry leader in the field of stress analysis and one of the most popular Micro-Measurements strain gages ever introduced. We are proud to announce that we have created a humidity resistant version of this strain gage, the CHA Series, that has better humidity performance than ever before which makes it the ideal choice for the most demanding applications such as humidity conditioned composite materials.



This new construction was built using ASTM-5229 “Standard Test Method Absorption Properties and Equilibrium Conditioning of Polymer Matrix Composite Materials” as guidance. The CHA Series strain gages are currently available in several uniaxial, tee rosette, and rectangular rosette configurations.

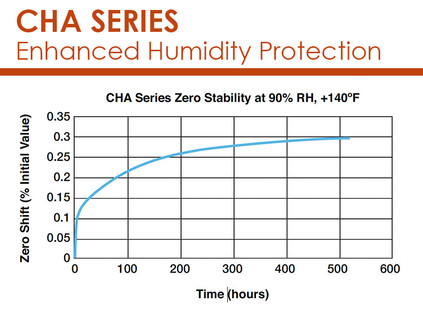

graph image

CHA Model Specifications:

  • Carrier Matrix: Provides an encapsulated strain gage with a high performance cast polyimide backing
  • Connection: Larger integral copper coated tabs
  • Temperature Range: –100° to +350°F (–75° to +175°C)
  • Strain Range: ±3% for all gage lengths, ±5% for gage lengths of 0.250 inch or greater
  • Fatigue Life: ±1500 microstrain for 10^6 cycles

CHA Features and Benefits

  • Larger copper coated tabs for easier leadwire connection
  • Cast polyimide backing for flexibility and toughness
  • Protective encapsulation film with enhanced moisture
  • protection for the most demanding applications
